Product features:

￭: Input range from 112 to 127 VAC

￭: AC phase-cut dimming at 120VAC

￭: Work with leading edge dimmer

￭: Constant Current desgin

￭: Built-in active PFC Function

￭: Compact, lightweight in plastic application

￭: Designed for indoor application

￭: Protections:Over Current/Short Circuit

￭: 3 year warrenty

￭: UL CUL CE approval

Product description:

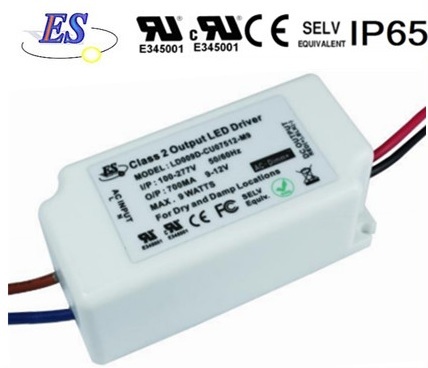

M9 series is 9W AC-DC constant current single output LED driver power supply with TRIAC dimming,Leading edge dimmable.

It accepts input 120VAC and provides 5 models with different output voltage/current:

LD009D-CU07512-M9:8-12Vdc 750mA 9W LED driver

LD009D-CU03724-M9:16-24Vdc 375mA 9W LED driver

LD009D-CU02536-M9:24-36Vdc 250mA 9W LED driver

LD009D-CU02242-M9:36-42Vdc 220mA 9W LED driver

LD009D-CU01948-M9:42-48Vdc 190mA 9W LED driver

M9 series exploiting Class 2 power supply design and adopting plastic case,rectangle shape desgin

IP65 ingress protection level allows this series to fit indoor LED light applications.

Company introduction:

Ever Shining Optotech Co., Ltd is one of the superior LED driver power supply manufacture,

Ever Shining dedicated to developing LED driver switching power supply from 1W to 150W.

Today,our products including constant current/constant voltage mode desgin led driver, Triac/ELV dimmable led driver,0/1-10V dimming led driver power supply,LED emergency backup driver,etc.. Most of them are complied with UL, cUL, CE, and ROHS approval to meet worldwide market demands.
